How it All Works

​

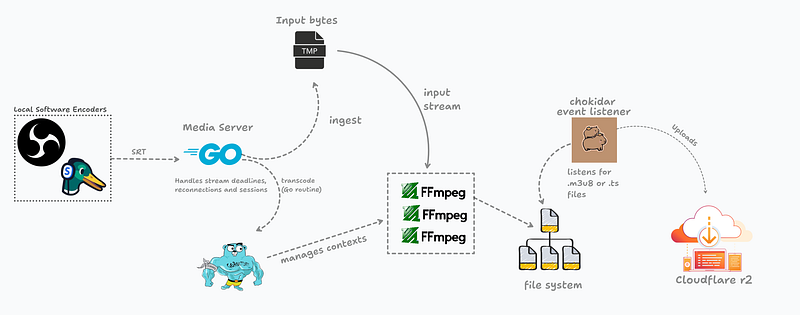

The Big Picture

​

Architecture Components

​

1. API Server (internal/http/server.go)

• Request Authentication: HMAC-SHA256 signature verification middleware
• CORS Support: Enabled for cross-origin requests
• OpenTelemetry Integration: Optional metrics collection and export
• Graceful Shutdown: Handles SIGTERM/SIGINT signals cleanly

​

2. Task Manager (internal/ingest/task_manager.go)

• Tracks stream lifecycle (INITIALISED → READY → STREAMING → STOPPED)
• Manages webhook notifications
• Coordinates SRT listener creation and cleanup
• Provides metrics data for observability

• Unique stream_id
• Current status
• Webhook URLs for status updates
• ABR configuration flag
• Context cancellation function for graceful shutdown

​

3. SRT Ingestion (internal/ingest/srt_task.go)

• Dynamic Port Allocation: Each stream gets a unique, randomly allocated port
• JWT Stream Key Validation: Validates stream keys before accepting connections
• Connection Timeout: 120-second timeout if no encoder connects
• Reconnection Support: Handles encoder disconnections gracefully
• Stream Key Format: mode=publish,rid={stream_id},token={jwt}

​

4. FFmpeg Transcoding

• Single HLS playlist with one video quality
• Output: {stream_id}.m3u8 and {stream_id}_XXX.ts segments
• 4-second segments, keeps last 10 segments

• Three quality variants: 1080p (5Mbps), 720p (3Mbps), 480p (1.5Mbps)
• Master playlist: {stream_id}_master.m3u8
• Variant playlists: {stream_id}_0.m3u8, {stream_id}_1.m3u8, {stream_id}_2.m3u8
• Segments: {stream_id}_{variant}_{segment}.ts

• Codec: H.264 (libx264) for video, AAC for audio
• Preset: veryfast for low latency
• Tune: zerolatency for real-time streaming
• GOP size: 60 frames (2 seconds at 30fps)
• Audio: 48kHz, 128kbps
• NOTE: These can be easily changed by the user according to their usecase.

​

5. File Watcher & R2 Uploader (internal/upload/r2-helper.go)

• File Watching: Uses fsnotify to detect new .m3u8 and .ts files
• Retry Logic: 3 attempts with exponential backoff
• Content-Type Detection: Automatically sets correct MIME types
• Public URL Generation: Constructs public URLs from CLOUDFLARE_PUBLIC_URL env var
• Callback on First Playlist: Triggers webhook with public URL when first playlist is uploaded

​

Data Flow: Step by Step

​

Step 1: Start Stream Request

Client → POST /api/start-stream
  ↓
HMAC Signature Verification
  ↓
TaskManager.StartTask()
  ↓
Create Task with INITIALISED status
  ↓
Spawn SRT Connection Task (goroutine)

​

Step 2: SRT Listener Setup

SRT Connection Task
  ↓
Allocate Free Port (random)
  ↓
Create SRT Listener on port
  ↓
Generate JWT Stream Key (2-hour expiration)
  ↓
Update Status: READY
  ↓
Send Webhook: "Stream is ready! URL -> srt://..."

​

Step 3: Encoder Connection

OBS/Encoder → SRT Connection
  ↓
SRT Listener Accepts Connection
  ↓
Validate Stream Key (JWT verification)
  ↓
If valid: Accept connection
If invalid: Reject with REJ_BADSECRET
  ↓
Start FFmpeg Process (pipe input from SRT)
  ↓
Start R2 Uploader Watcher (goroutine)

​

Step 4: Streaming & Transcoding

SRT Stream → FFmpeg stdin
  ↓
FFmpeg transcodes to HLS
  ↓
Writes segments to output/{stream_id}/
  ↓
File Watcher detects new files
  ↓
Upload to R2: {stream_id}/{filename}
  ↓
On first .m3u8 upload:
  - Generate public URL
  - Update Status: STREAMING
  - Send Webhook with StreamLink

​

Step 5: Playback

Viewer → Requests HLS Playlist from R2
  ↓
R2 serves .m3u8 playlist
  ↓
Player requests .ts segments
  ↓
R2 serves video segments
  ↓
Player buffers and plays stream

​

Stream States

1. INITIALISED: Task created, SRT listener being set up
2. READY: SRT URL generated, waiting for encoder connection
3. STREAMING: Encoder connected, actively transcoding and uploading
4. STOPPED: Stream ended (user stop, timeout, or error)

​

Error Handling

• Port Allocation Failure: Stream marked as STOPPED, error in webhook
• SRT Listener Error: Stream marked as STOPPED, cleanup initiated
• Stream Key Generation Failure: Stream marked as STOPPED
• FFmpeg Process Errors: Connection retried, stream continues if encoder reconnects
• R2 Upload Failures: Retried 3 times with exponential backoff
• Connection Timeout: After 120 seconds without encoder, stream marked as STOPPED

​

Performance Considerations

• Concurrent Streams: Each stream runs in its own goroutine, allowing multiple simultaneous streams
• Memory Usage: In-memory task store; consider persistence for production
• Disk I/O: HLS files written locally before upload; ensure sufficient disk space
• Network: R2 uploads happen asynchronously; network issues don’t block transcoding
• CPU: FFmpeg encoding is CPU-intensive; monitor CPU usage per stream

​

Security Features

• HMAC Request Signing: All API requests must be signed
• JWT Stream Keys: Time-limited, stream-specific authentication
• TLS/HTTPS: Server requires TLS certificates
• Stream Key Validation: Rejects invalid or expired keys
• Connection Isolation: Each stream uses a unique port and key

​
